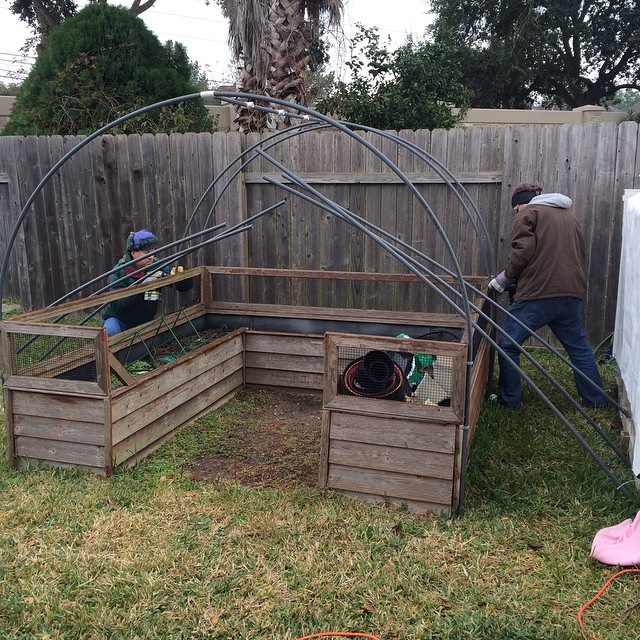

Step 1...Jan 2015, Paul & Gene starting construction of the main chicken coop. Converting U-shaped garden to fully enclosed Quonset Hut. Size 8'x8', wood frame door and rear wood frame for nest boxes, shelf & A/C. Covered with 3 mil poly sheeting, vapor barrier & tarp. 2-4'x8' Insulation Sheathing on roof under tarp.
20 amp GFI circuit. 120v 5000 BTU A/C, 120v Milkhouse heater, Gable Fan for daily airout and when outdoor temp is below 74 deg. Insteon Temp Transmitter. 1080p PTZ Cam. 5psi Water Nipples and Cup systems. 4 nest boxes. Sleeping shelves (easy poo cleanup). 21' dust bath area. 24/7 soft rock, oldies and big band mp3 player (500+ songs). 4' Double LED Shop Light and LED low lighting for night and egg laying hours 5am - 4pm. Insteon 8 button keypadlinc for local control of all lights, A/C, chicken door and all fans..
Homemade electric door. Used an old clipboard for door. Built tracks from scrap lumber. Bought Add-A-Motor D20 online ($80) and used Insteon I/O controller for 12v operation and magnetic contacts to read open/close status. All sunrise and sunset settings programmed with the ISY controller for all Insteon controls. The door will also open during the night if the temp rises above 80 deg. ie. A/C failure, fire, etc. Feed room on right side is the Harbor Freight 6' x 8' Greenhouse with a tarp over it. This is where it all started...FFA 50 Broiler project for my daughter in 2015. 50 broiler chicks to full grown in 8 weeks. Raised them in greenhouse, then built Main coop so we didn't have to cull out the small ones.
The ultimate backyard chicken coop & run. A/C, Heater, Gable Fan, auto 5psi watering inside and outside, Electric Door, ISY/Insteon control on everything. Operated by phone, pc & scheduling for lighting, door, A/C, Fan(s) based on outside temperature, humidity, etc. Outdoor fan, sensors on water pressure, low feeder, low scratch feeder & High Temp in Coop. All alarms sent by text to phone. Auto Feeder, Auto Scratch Feed 3 times/day. 2 PTZ 1080p ChickenRun & Coop Cams, 23 hens.
Step 1...Jan 2015, Paul & Gene starting construction of the main chicken coop. Converting U-shaped garden to fully enclosed Quonset Hut. Size 8'x8', wood frame door and rear wood frame for nest boxes, shelf & A/C. Covered with 3 mil poly sheeting, vapor barrier & tarp. 2-4'x8' Insulation Sheathing on roof under tarp.
pcmasters

Step 1...Jan 2015, Paul & Gene starting construction of the main chicken coop. Converting U-shaped garden to fully enclosed Quonset Hut. Size 8'x8', wood frame door and rear wood frame for nest boxes, shelf & A/C. Covered with 3 mil poly sheeting, vapor barrier & tarp. 2-4'x8' Insulation Sheathing on roof under tarp.
