I finally finished this year's coop. None too soon either as the pullets are over 25 weeks and about to lay. It's a take on the Purina Chicken Hutch. I used 2X3's for corners and outside of edge of floor. The rest of the floor (plywood screws to and two cross beams) is 2X2's. Other than corners, outer floor frame and 2X6's used for skids all stick frame and nailers are 2X2's. Floor is 1/2" plywood and walls are 3/8" Plytanium. This coop was under 300 lbs but the roofing used was scrap commercial metal which is very thick (had to predrill for roof screws) so probably ended around 350 lbs or more. Including stain but not the roofing as that was free this coop came in just under $250. So if someone wanted to go light weight material like this and had to purchase tin or ploycarbinate roofing would cost about $300. And weasel proof!
The stilt part is tall, my feeder is a tall 30 lbs dispenser so went a bit leggy on this to accommodate it hanging chest height for birds. The skids are 2X6's screwed together then used my sawsall to scribe the 1/4 circle ends of skids. 2- 2X3's for corners, one longer for lag screws, with washers, to connect to skids. Provided 1" from 2x3 to ground but in hind sight I should have cut a taper to end too. Soft spring ground may be dragging there. Reason I went with two 2x6 for ski is soft spring lawn, if that's not a problem in your area this light weight could easily skid on one 2X6.

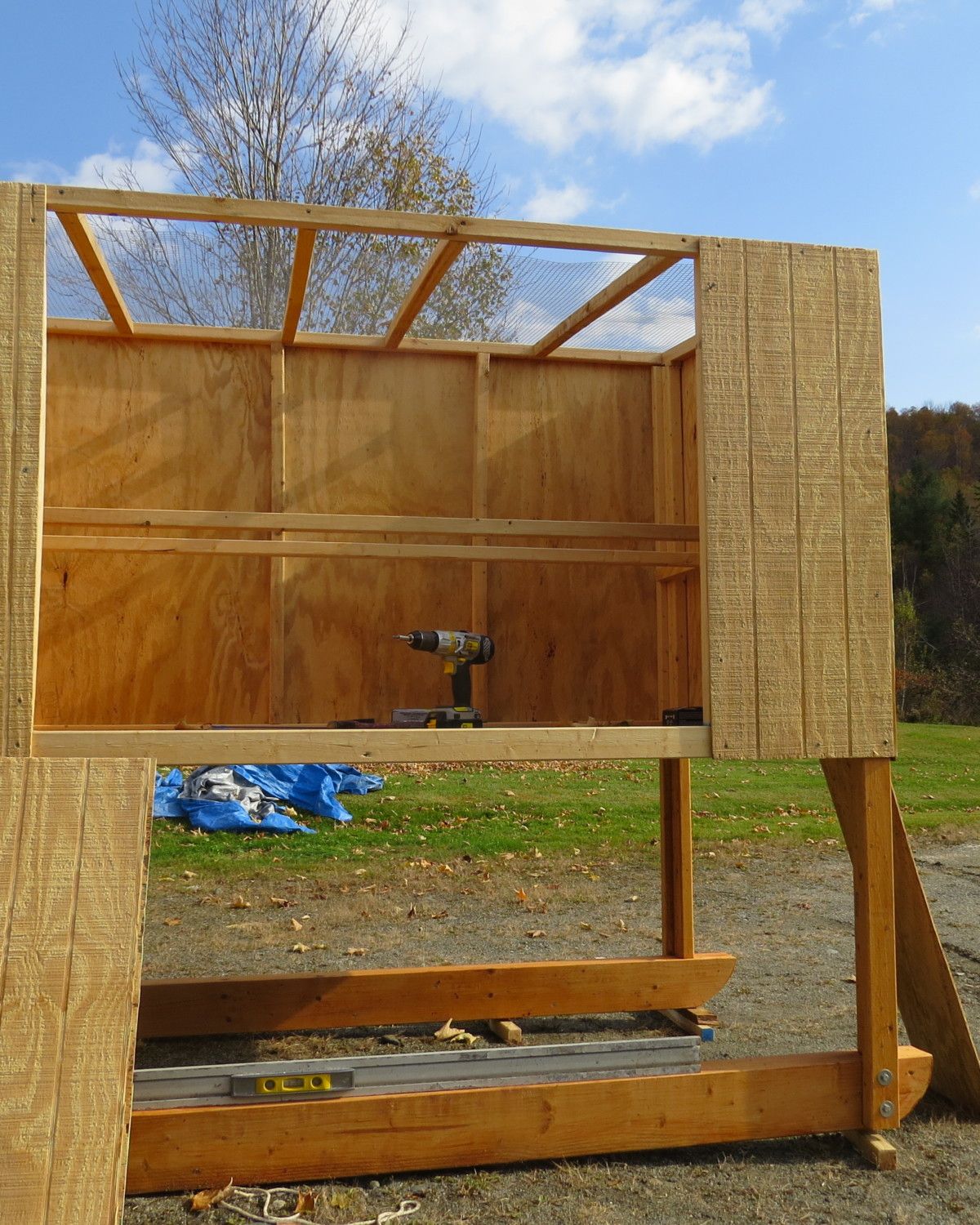

Here you see two roosting bars and a roofing frame above made from 2X2's. Roosting bars were planned for 4" of bedding. I could of made them higher but this seemed about right. Note that the center of plywood end wall has a 2x2 piece wedge between roost support and wall so a 3" screw from outside holds center of 3/8" sheet and roost support secure. The roof frame helped tie the corners square. Cut "rafters" with 8 degree to accommodate roof pitch, slopes from 48" wall to 42" in 4 ft. As the roof will only be metal the entire top has 1/2" hard wire cloth. The high hats of metal roof is ventilation and the only way a weasel can get in hence the $20 in hardware cloth.

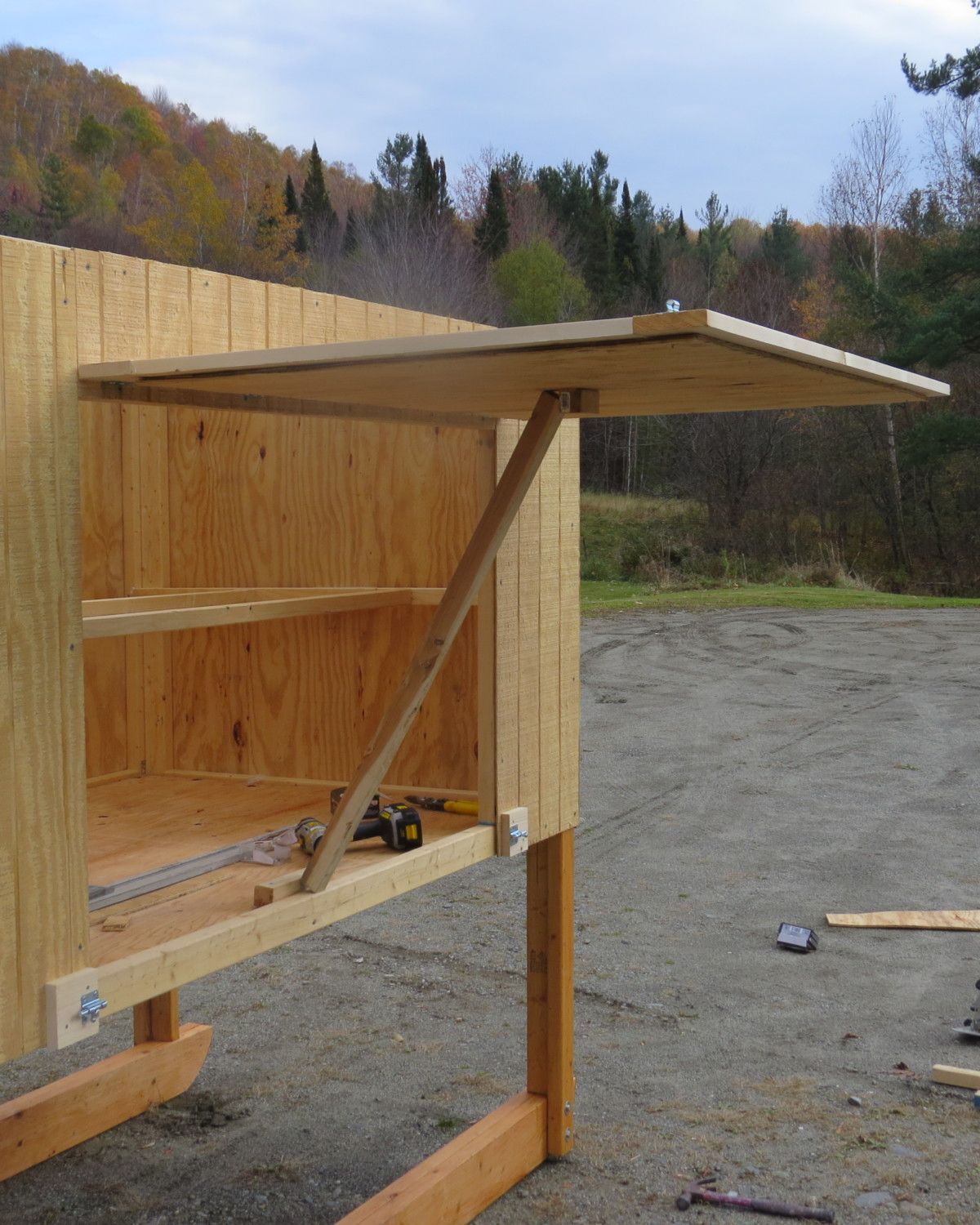

The back access door. I wanted to make this a swing down and even cut the plywood to fit the swing. Then as framing the edges thought I don't need to cut the bottom trim piece for hinges and will connect to bottom of coop to make things simple. Well, in doing that the swing would have hit the ground instead of the 1" or so clearance planned for so made it a top hinge door. Screwed a peice of 2x2 on door and floor of coop to support the prop stick. The prop will just rest in coop along back wall when not in use (only need to open every two weeks or so to scoop out a bit under roosts then rake up).
Access door, two latches and four very small hinges. The trim is 1x4 strapping not 1x4 select finish pine.
This is a 3X1 ft frame with floor nailed from bottom. Sides are Plytanium sloping 14" to 12". Note the two scrap pieces of 2x2 used for something to screw corner together. Keep it simple and light. Entire coop is screwed together. Sheets of plywood are plenty strong but need something to screw them to.
Cut a 9x30" hole. Screwed 2x2's from inside coop. Center opening between 2x2's is 9 inches, leaving the remainder two openings 9 inches (subtracting the 2 2x2's width). The outside nailers are to screw the nesting box to. Then put on lid with a few hinges. Cut a few 1' dividers and Nail to inner 2x2's. Three 1x1 foot external mounted nesting boxes done.
Can't see from this angle but that's really tall high hat roofing, 1.5 inch or more. The pop door is similar to framed back access in that the frame of door overhangs the opening. Used same piece from cut as door and framed it. Openings of door and nesting boxes are 6 inches from coop floor to allow for 4 inches of bedding. I put in one bag today and see it might hold another full bag of shavings.
Well, that's basically it. I went only 7 ft long so had extra siding for nesting boxes (used 3- 4x8' plytanium sheets). This thing I can tow along with a riding lawn mower no problem. After the build I see I could have cut the wall height by 6" or raised the roosts some. Though I used tall high hat metal roofing it is still too dark in there so am adding a polycarb or polystyrene type 8x10 inch window to other end to give more light for them to roost with. So I need to finish staining, cut out and screw on the small window and screw in a hook to hold the feeder.
Popped the back door open some for lighting and all 14 birds went in no problem. It's actually a palace as they've been cramming in their grow out coop until now.
*I don't keep feed or water in coops. I never lock birds in the coop, they come outside every morning. Please, don't "teach" me about 4sqft per bird in coop. This is a different and still effective management style.

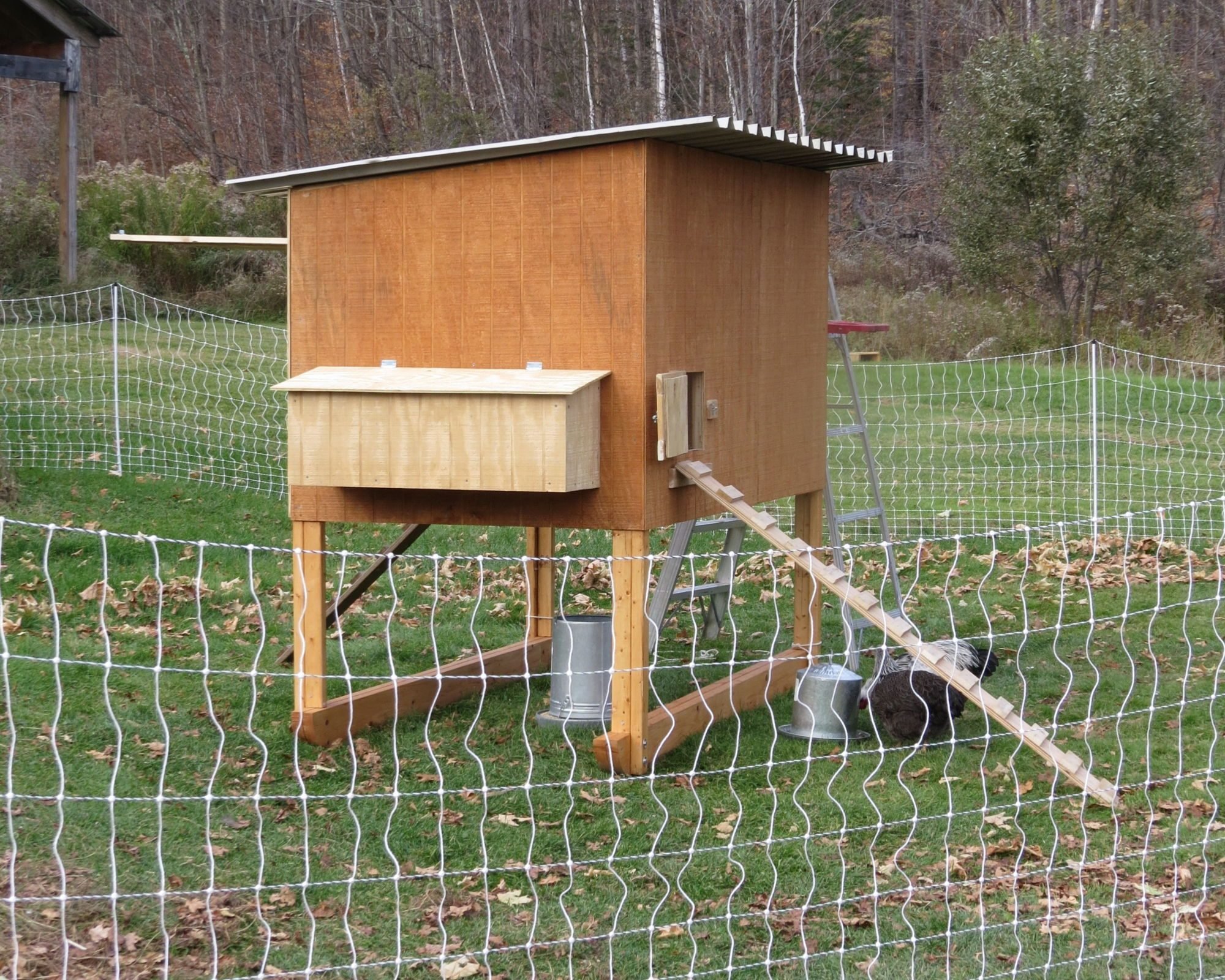

Back access propped open so they had plenty of light to check it out this first night. I'll screw on the plexiglass window tomorrow. 164', 0.5 joule 48" electric fencing still working like a charm. Loving this first year having 1600 sqft of portable run.
